weber.therm circle | The first recyclable by type ETICS



Icon of a mineral wool board with the text weber.therm circle with mineral wool board below            Icon of a wood fibre board with the text weber.therm circle with wood fibre board below            Icon of a material pile with a circular arrow around it and the text deconstruction and reuse below it            Icon of a house with the text references below



weber.therm circle is the first ETICS which can dismantled and recycled by separation of each material type. Once it has reached the end of its service life, again new high-quality products are obtained from the sorted components.

Zero Waste. Building better.

Construction activities in Germany consume around five million cubic metres of insulating materials and 100 million tons of sand, among other things, every year. Real estate is a long-term investment, but it is always undergoing changes, such as additions or conversions. In these cases or during dismantling, the building materials are disposed of in a mixed way and are thus lost for further use in building construction. Our society can no longer afford this expensive and ecologically unsatisfactory process.

The lack of recyclability of thermal insulation composite systems was a major criticism of this and other composite construction methods from the outset. As the word "composite" already expresses, all components are bonded one to another, so that they only can be disposed of mixed together and not sorted type by type.

Saint-Gobain Weber has now developed a solution: With the new zero waste external thermal insulation composite system weber.therm circle, all components can be separated according to type and recycled after dismantling.

From a one-time use of valuable resources, building thus develops into a raw material cycle. This future-proof premium system makes it possible to work in the highest quality and at the same time to plan and to build peak of ecological progress.

Robust, durable and recyclable

Many advantages in one system

weber.therm circle combines the advantages of all Weber ETICS. As a fully mineral thermal insulation composite system, it offers the high fire protection (class of reaction to fire A 1 - EN 13501-1) and is therefore non-combustible. The diffusion-open premium ETICS keeps the heat in the house in winter and in summer the heat outside. The massive construction scores with its high mass and good heat storage capacity. This favours rapid drying and thus prevents from algae growth. Due to the heavy mineral wool quality and the solid build-up the system also improves sound insulation.

With a solid render shell up to 25 mm thickness, weber.therm circle is also suitable for highly stressed facades. The solid render system is low-maintenance and its service life is significantly longer than that of a thin-layer system.

weber.therm circle Systemaufbau

With AquaBalance mineral overlay renders (top coats) and AquaBalance paints the facade remains also protected against algae and fungi growth in the long term. The environment-friendly AquaBalance technology is based on a physical principle and require no biocidal additives. This protects the facade and the environment.

In addition to these advantages, weber.therm circle is the first external thermal insulation composite system to pursue the approach of recyclability in a consistent way. The system is mechanically fastened to the wall. A woven mesh as separation fabric embedded in the specially developed base coat render and the absence of bonding mortar ensures that it can later be completely dismantled and separated according to each component type. During the entire use phase weber.therm circle meets the same requirements for durability and safety as any other ETICS approved by the building authorities. Due to its design, it enables the components to be recycled and facilitates extensions and conversions as well as the integration of future technological leaps.

For this system the building authority approval under no. Z-33.9-167 been applied for.



Logo DGNB Navigator  Blauer Engel Umweltzeichen für uz140

One surface, unlimited possibilities

Besen zur Strukturierung des Putzes unseres nachhaltigen WDVS

A high-quality wall construction deserves a worthy finish. After all, a technically demanding and permanently beautiful facade does not serve as a figurehead, but also contributes to the long-term preservation of the building value.

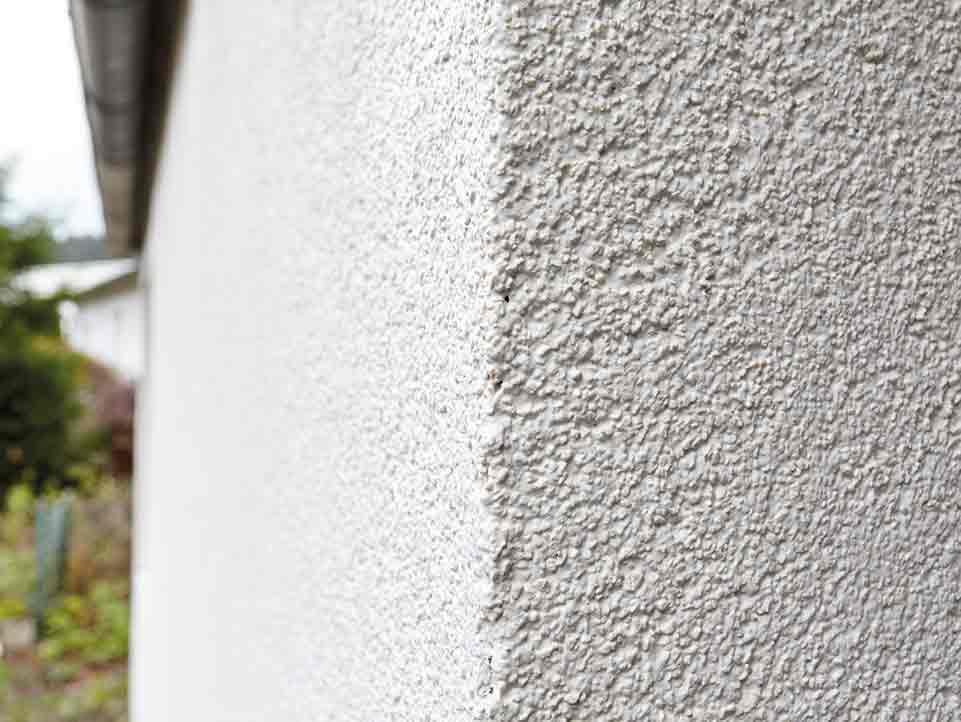

Mineral overlay renders do not only score points for their longevity, but also unfold a great depth effect. Variable render thicknesses give the facade an interesting and individual look.

The design options for mineral renders is almost unlimited. Thanks to a multitude of colour and texture combinations, every facade becomes unique. In addition to well-known textures, such as float renders, rilled renders or smooth renders, classic texturing techniques, like renders with broom or dragged textures are also available.

Solid and mineral

High-quality materials without biocides

weber.therm circle is not only convincing by its premium build-up and recyclability. With this top-class system, the use of a mineral AquaBalance scratch render provides a surface finish of highest quality.

From 2019, Weber equips its entire range of overlay renders (top coats) with biocide-free AquaBalance technology. It picks up the hydrophilic principle of mineral renders and reinforces it. The moisture is drawn off from the surface, stored in fine capillaries in the upper render layer and released in a controlled manner as temperatures rise. No moisture remains on the facade, and fungi and algae have no chance.

Thanks to its purely mineral components and the waiver of biocides, weber.therm circle contributes to a sustainable ecological lifestyle and meets the growing need for healthy living.

Nachhaltiges WDVS weber.therm circle in einzelnen Bestanteilen

weber.therm circle

provides conclusive answers to all questions about ETICS

  • for cold, heat and sound insulation
  • for safety in case of fire
  • for algae prophylaxis, massiveness, freedom of design
  • to the hitherto unresolved question of recyclability

Tender documents for weber.therm circle

Layer by layer

Innovative system, proven workmanship

  1. The insulation boards are fixed to the wall with screw dowels, but without bonding mortar.

  2. Thermal loss is prevented by inserting caps of mineral wool over dowel heads and subsequent dismantling is possible.

  3. The solid base coat render in 8 - 12 mm thickness is applied in one layer directly onto the insulation boards.

  4. The separation fabric (woven mesh) is installed close to the insulating material. During dismantling, it holds the render shell together and ensures a clean separation of the base coat render from the insulating material.

  5. The separation layer (base coat render + woven mesh) is followed by a reinforcement layer. For this purpose, a lightweight reinforcing render in 5 - 8 mm thickness is applied in one layer and the same woven mesh as described above is embedded.

  6. The design of corners and connections is similar to conventional ETICS.

  7. As third render layer an overlay render (top coat) is applied. The solid render system can thus achieve a whole layer thickness of more than 25 mm.

  8. The use of mineral overlay renders makes it easy to recycle the whole render shell as single-variety.

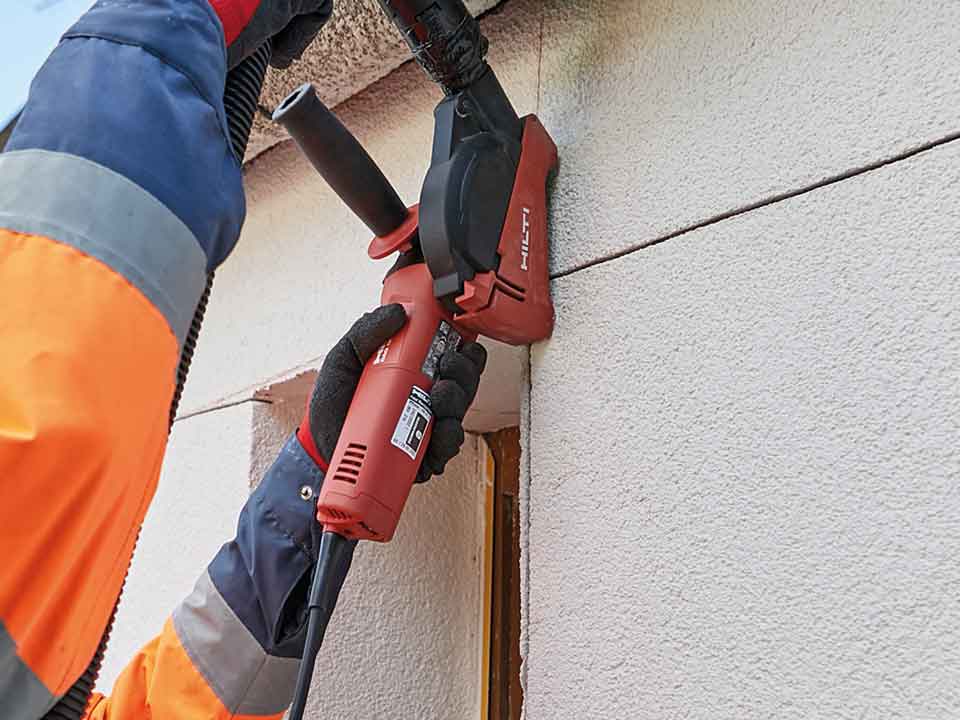

How the removal of the ETICS works
